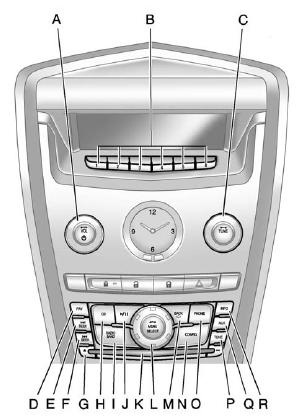

Overview (Radio with CD)

border=0>

A. VOL/ src=- Turns the system on or off and adjusts" width=13 height=15 id="_x0000_i1374" src="images/books/1183/3/index.106.gif" border=0>- Turns the system on or off and adjusts the volume.

B. Buttons 1 to 6 - Radio: Saves and selects favorite stations.

C. TUNE - Radio: Manually selects radio stations.

- CD: Selects tracks.

D. FAV - Radio: Opens the favorites list.

E. border=0>SEEK - Radio: Seeks the next station.SEEK - Radio: Seeks the next station.

- CD: Selects the next track or fast forwards within a track.

F. border=0>SEEK - Radio: Seeks the previous station.SEEK - Radio: Seeks the previous station.

- CD: Selects the previous track or rewinds within a track.

G. border=0>(CD Eject) - Removes a disc from the CD slot.(CD Eject) - Removes a disc from the CD slot.

H. CD - Selects the CD player when listening to a different audio source.

I. RADIO/BAND - Changes the band while listening to the radio.

- Selects the radio when listening to a different audio source.

J. border=0>- CD: Pauses the CD.- CD: Pauses the CD.

K. CD Slot - Insert a CD.

L. MENU/SELECT - Press: Selects menu items.

- Turn: Opens menus, highlights menu items, or sets numeric values while in a menu.

M. BACK / - Menu: Moves one level back.

- Character Input: Deletes the last character.

N. CONFIG - Opens the settings menu.

O. PHONE - Opens the phone main menu.

- Mutes the audio system.

P. TONE - Opens the tone menu.

Q. AUX - Selects a connected external audio source.

R. INFO - Radio: Shows available information about the current station.

- CD: Shows available information about the current track.
