Rear Seats
Split Folding Seatbacks
With this feature, either side of the rear seatback can be folded down for more cargo space.
Folding the Seatbacks
Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.
To fold the seatback:
1. Unbuckle the rear safety belts and move the front seatbacks to the
upright position. See Reclining Seatbacks.
2. Make sure that there is nothing under, in front of, or on the seat.

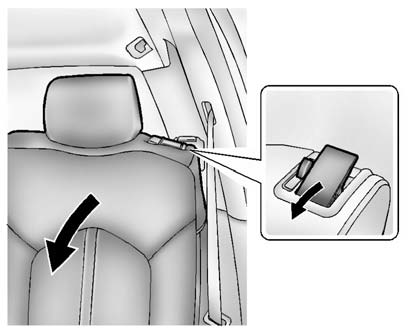

3. Lift the lever on the top of the seatback. A tab near the seatback lever
raises when the seatback is unlocked.
4. Fold the seatback forward. A tab near the seatback lever retracts when the
seatback is locked in place.
Keep the seatback in the upright, locked position when not in use.
Raising the Seatbacks
WARNING
If either seatback is not locked, it could move forward in a sudden stop or
crash. That could cause injury to the person sitting there.
Always push and pull on the seatbacks to be sure they are locked.
WARNING
A safety belt that is improperly routed, not properly attached, or twisted will
not provide the protection needed in a crash.
The person wearing the belt could be seriously injured. After raising the rear
seatback, always check to be sure that the safety belts are properly routed and
attached, and are not twisted.
To raise the seatback:
1. Lift the lever on top of the seatback. Raise the seatback and release the
lever. A tab near the seatback lever raises when the seatback is unlocked.
2. Push the seatback rearward until it locks in the upright position.
A tab near the seatback lever retracts when the seatback is locked in place.
3. Make sure the rear safety belts are not twisted or caught between the seat cushion and the seatback.
Reclining the Seatbacks
To recline the seatback:
1. Lift and hold the lever on top of the seatback. A tab near the seatback
lever raises when the seatback is unlocked.
2. Tilt the seatback rearward, and then release the lever when the seatback is
in the desired position. A tab near the seatback lever retracts when the
seatback is locked in place.
