Front Display

Cadillac SRX / Cadillac SRX Owners Manual / Driving and Operating / Object Detection Systems / Ultrasonic Parking Assist / Front Display

border=0>

The front display is located in the instrument panel in the center of the speedometer and has four bars to provide distance and system information.

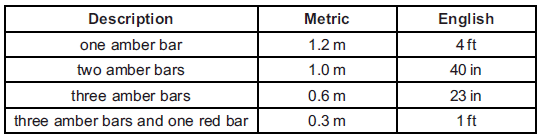

The following describes how the UFRPA front display lights appear as the vehicle gets closer to a detected object:

border=0>
