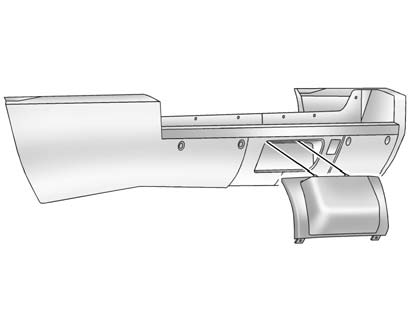

Hitch Cover (without Dual Exhaust)

The vehicle may have a hitch cover. To remove the hitch cover:

1. Turn the fasteners on the lower tabs 90 degrees counterclockwise.

1. Turn the fasteners on the lower tabs 90 degrees counterclockwise.

2. Lift the lower edge of the cover about 45 degrees.

3. Pull the cover downward to disengage the upper attachments.

To reinstall the hitch cover:

1. Hold the cover at a 45 degree angle to the vehicle and push the upper tabs in the hitch cover into the chrome slots in the fascia.

2. Move the bottom of the cover forward until the lower tabs line up with the lower fascia slots.

3. Snap the hitch cover into place by pushing the upper corners forward.

4. Turn the fasteners on the lower tabs 90 degrees clockwise to lock the cover in place.
